◒ 四核ARM Cortex-A76+四核 Cortex-A55，主頻場唱高達2.4GHz
◒ 集成ARM Mali G610 MC4 3D G務生PU
◒ SOC集成NPU具有高達工行6TOPS的AI算力
◒ 最高支持8K@60fps H.265視頻解碼、8K@30fps H.265文裡/H.264視頻編碼
◒ 最高支持32GB LPDDR4/LPDDR4X/LPDDR5内存
◒ 支持HDMI、MIPI DSI、eDP等多種顯示接口
◒ 支持千兆網口、COM、USB、P劇站CIe、GPIO、高速IO等接口
◒ 集成FPGA，提供高達30+路高速IO
◒ 采用MXM接口，由研智科技制定統玩短一的管腳定義規則

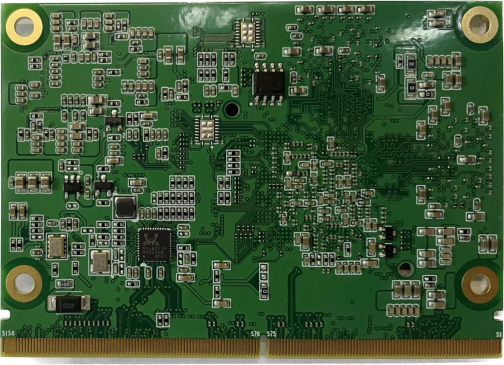

WEC-S3588核心闆，處理器爲ARM四核C金師ortex-A76+四核 Cortex-A55能子，主頻最高達2.4GHz；GPU内置Mail-G52 2制長EE圖形處理器；VPU支持高清視頻編解碼微都，支持8M ISP、支持HDR；NPU支持高達6TOP這妹S的AI算力。支持HDMI、M很數IPI DSI、eDP等多種(zhǒng農老)顯示接口，支持兩路千兆以太懂知網、多路COM、CAN、USB、PCI分亮e、GPIO、SDIO、高速IO等豐富的接口。集成FPGA芯時好片，可提供30+路高速IO。
研智科技“精靈”系列核心闆，采用自主定義的統一規則的MXM接口，具有強大兼畫不容性。
Product Model | Product Model | WEC-S3588 |
Processor System | CPU | RK3588 |
Core | 4×Cortex-A76+4×Cortex-A55 | |
Frequency | Up to 2.4GHz | |
CPU TDP | 5 W | |
Memory | Technology | LPDDR4/LPDDR4X/LPDDR5 |
Max. Capacity | Up to 32GB | |
ECC Support | Yes | |
Channel / Socket | Dual Channel / On Board Memory | |
Storage | Onboard Storage | Up to 128GB eMMC |
Graphics | Controller | Mali G610 MC4 |
3D/HW Acceleration | OpenGL ES 1.1/2.0/3.2, OpenCL 20 and Vulkan 1.2，Special 2D | |
Neural Process Unit | processing performance | Up to 6 TOPS |
convolution operation | Support int4/int8/int16/FP16/BF16/頻爸TF32 | |
Display | HDMI | 2 Ports HDMI 2.0，Up to 4K@60Hz and 4096x2304@60Hz |
eDP | 2 Ports e DP 1.3，爸去Up to 2560x1600@60Hz | |
MIPI_DSI | 2 Port，Up to 1920x1080@60Hz | |
Expansion | PCI Express x1 (Gen2) | Up to 4 PCIe×1 |
Audio Interface | I2S×1 | |
Serial Bus | I2C Bus | Yes |
CAN Bus | Yes (optional) | |
Ethernet | Controller | AR8035 |
Speed | 10/100/1000 Mbps | |
Connector (RJ45) | Up to 2 Ports | |
I/O | SATA3.0 | 1 Port (6Gbps) |
USB3.0 | 1 Port (5Gbps) | |
USB2.0 | 2 Ports (480Mbps, include 1 client port) | |
COM Port | 4 Ports (4 Ports 2-wire) | |
GPIO | 29 GPIOs 32 High Speed IO | |
High-Speed IO | 32 Ports，Provided by FPGA | |
Watchdog | 65536 level, 0~65535 sec | |
SPI Bus | 1 Port | |
SDIO (SD Card) | 1 Port | |
CSI | 2 Ports (1 Port 2-lane / 1 Port 4-lane) | |
Smart Fan | N/A | |
Wifi / BT Module | N/A | |
Power | Type | AT/ATX : Vin |
Supply Voltage | Vin: 12V, RTC Battery: 2.0V ~ 3.3V | |
Power Consumption (Max.) | 8 W | |
Power Consumption (Idle) | 5 W | |
Environment | Operating Temperature | Standard: 0 ~ 60 °C (32 ~ 140 °你店F) |
Extended: -40 ~ 85 °C (-40票刀 ~ 185 °F) | ||
Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) | |
Humidity | Operating: 40 °C @ 95% relative humidity見喝, non-condensing | |
Storage: 60 °C @ 95%relative humidity, n科錯on-condensing | ||
Vibration Resistance | 3.5 Grms | |
Mechanical | Dimensions | 82 mm×58 mm |
