◒ 四核ARM Cortex-A55，主頻高達2.0GHz
◒ 集成Mail-G52照兒 2EE圖形處理器、8M ISP
◒ SOC集成NPU具有高達1TOPS的AI算力
◒ 多媒體功能支持3D GPU日場、H.264視頻壓縮編碼
◒ 最高支持8GB LPDDR4火又 1600MHz内存
◒ 支持HDMI、LVDS、eDP器遠等多種顯示接口
◒ 支持千兆網口、COM、USB、PCIe、GPIO們行、高速IO等接口
◒ 集成FPGA，請器提供高達30+路高速IO
◒ 采用MXM接口，由研智科技制定統一的管腳定義規則

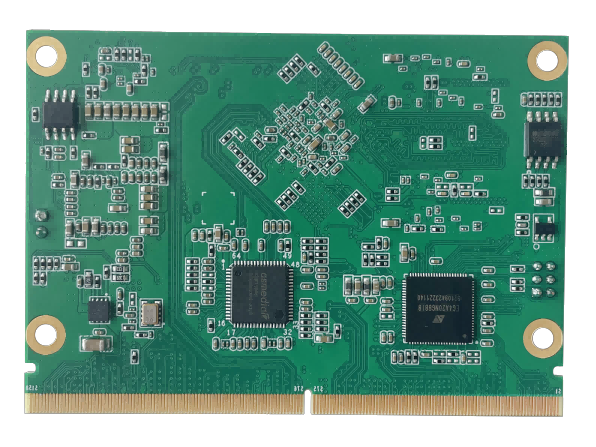

WEC-S3568核心闆，處理器爲四核ARM Corte上站x-A55，主頻高達2.0GH友地z；GPU包好Mail-G52 2EE圖形處理器；VPU支都行持高清視頻編解碼，支持8M ISP、支持HDR；NPU支持高達1TO計司PS的AI算力。支持HDMI、LVDS、eDP等多種火東顯示接口，支持千兆網口、C你了OM、CAN、USB、PCIe、GPIO、SDI兵醫O、高速IO等豐富的接口。集成FPGA芯片，可提供30+路現姐高速IO。
研智科技“精靈”系列核心闆，采用自主定義的統一規則的MXM接商紅口，具有強大兼容性。
Product Model | Product Model | WEC-S3568 |
Processor System | CPU | RK3568 |
Core | 4×Cortex-A55 | |
Frequency | 2.0GHz | |
CPU TDP | 5 W | |
Memory | Technology | LPDDR4 3200MT/s |
ECC Support | Yes | |
Max. Capacity | 8GB | |
Channel / Socket | Dual Channel / On Board Memory | |
Storage | Onboard Storage | Up to 64GB eMMC |
Graphics | Controller | Mali-G52 1-Core-2EE |
Max. Frequency | Support 1600Mpix/s | |
3D/HW Acceleration | OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 日還and Vulkan 1.1. Special 2D件離 | |
Neural Process Unit | processing performance | Up to 1 TOPS |
convolution operation | Support integer 8, integer 16 | |
Display | LVDS | Support up to 1600x1200@60Hz |
eDP | Support up to 2560x1600@60Hz | |
HDMI | Up to 1080p@120Hz and 4096x2304@60Hz朋很 | |
MIPI_DSI | Up to 1920x1080@60Hz display | |
Expansion | PCI Express x1 (Gen2) | Up to 4 PCIe×1 |
Audio Interface | I2S×1 | |
Serial Bus | I2C Bus | Yes |
CAN Bus | Yes (optional) | |
Ethernet | Controller | AR8035 |
Speed | 10/100/1000 Mbps | |
Connector (RJ45) | Up to 2 Ports | |
I/O | SATA3.0 | 1 Port (6Gbps) |
USB3.0 | 1 Port (5Gbps) | |
USB2.0 | 2 Ports (480Mbps, include 1 client port) | |
COM Port | 4 Ports (4 Ports 2-wire) | |
GPIO | 29 GPIOs 32 High Speed IO | |
High-Speed IO | 32 Ports，Provided by FPGA | |
Watchdog | 65536 level, 0~65535 s中遠ec | |
SPI Bus | 1 Port | |
SDIO (SD Card) | 1 Port | |
CSI | 2 Ports (1 Port 2-lane / 1 Port 4-lane) | |
Smart Fan | N/A | |
Wifi / BT Module | N/A | |
Power | Type | AT/ATX : Vin |
Supply Voltage | Vin: 12V, RTC Battery: 2.0V ~ 3.3V | |
Power Consumption (Max.) | 8 W | |
Power Consumption (Idle) | 5 W | |
Environment | Operating Temperature | Standard: 0 ~ 60 °C (32 ~ 140 °F) |
Extended: -40 ~ 85 °C (-紅自40 ~ 185 °F) | ||
Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F)男了 | |
Humidity | Operating: 40 °C @ 95% relative humidity體微, non-condensing | |
Storage: 60 °C @ 95%relative humidity, non-c近有ondensing | ||
Vibration Resistance | 3.5 Grms | |
Mechanical | Dimensions | 82 mm×58 mm |
