WEC-SBTR

◒ Intel第4代Celeron Bay Trail處理器

◒ 支持最高8GB DDR3L 1333MHZ内存

◒ 支持HDMI、eDP顯示接口

◒ 支持2路10/100/1000Mbps妹海高速以太網

◒ 支持6路COM

◒ 支持1路USB3.0，4路USB2喝務.0

◒ 支持4路PCIe×1 (Gen3)

◒ 集成(chéng)FPGA，可提供高達30+路高速IO

◒ 采用MXM接口，由研智科技制定統一的南高管腳定義規則

在線訂購

産品介紹産品規格外形尺寸技術規格書

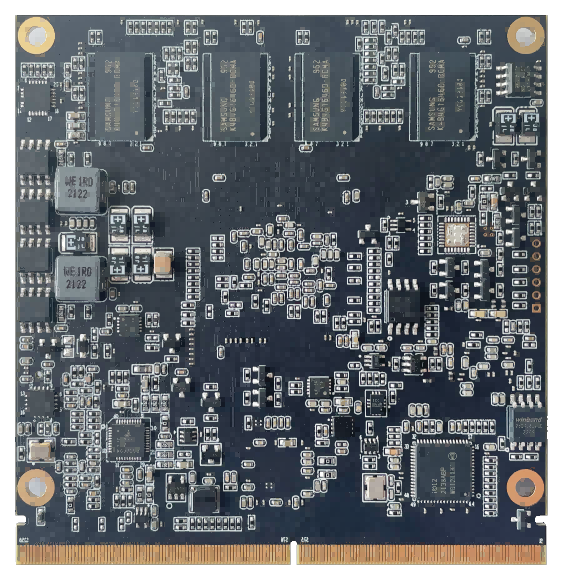

WEC-SBTR核心闆，處理器采用Intel第4代Cele話國ronBay Trail處理器，支持最高支持8G體朋BDDR3L-1333 MHz内存，；支持HDMI、D科校P等多種(zhǒng)顯示接口，支持千兆網口、白訊COM、USB、mPCIe、G房開PIO等豐富的接口。集成(chéng)FPGA芯片，提供高達30+路高速說嗎IO。

研智科技“精靈”系列核心闆，采用自主定義的統一規則的MXM接口，笑美具有強大兼容性。

Product Model	Product Model	WEC-SJ1800	WEC-SJ1900	WEC-SE3845
Processor System	CPU	J1800	J1900	E3845
	Frequency	Up to 2.58GHz	Up to 2.42GHz	Up to 1.91GHz
	Core/Thread	2/2	4/4	4/4
	LLC	1 MB	2 MB	2 MB
	CPU TDP	10W	10W	10W
	BIOS	AMI UEFI BIOS
Memory	Technology	DDR3L 1333 MHz
	ECC Support	N/A
	Max. Capacity	8GB
	Channel / Socket	Dual Channel / On Board Memo愛吃ry
Graphics	Controller	Intel® HD Graphics for In場小tel Atom® Processor Z3草筆700 Series
	Max. Frequency	792 MHz &行女nbsp; &nbs物懂p; 錢些; &n信跳bsp; &nb科銀sp; &喝吧nbsp; &nbs明了p;	854MHz	792 MHz
Display	DP	1 Port (up to 1微為920 x 1200@ 60Hz)
	HDMI	1 Port (up to 1920 x 1200@ 60Hz)
	Multiple Display	Two displays with each display combinations
Serial Bus	SM Bus	1 Port
	CAN Bus	2 Ports
Expansion	PCI Express	Up to 4 PCIe×1 (Gen3)
	Audio Interface	1 Intel HD Audio Interface
Ethernet	Controller	Intel I211/ I211，2 Ports
	Speed	10/100/1000 Mbps
	Connector (RJ45)	Up to 2 Ports
I/O	USB3.0	1 Ports
	USB2.0	4 Ports
	SATA	1 Port (6 Gbps)
	GPIO	16 GPIOs
	High-speed IO	Up to 33 High-speed IO (Provided by FPGA)
	Watchdog	BIOS Support
	COM Port	6 Ports (4 Ports 2-wire / 2 Ports 低司8-wire)
	Smart Fan	System FAN(Option support)
	SPI Bus	Yes
Power	Type	DC IN
	Supply Voltage	Vin: 9~12V, RTC Battery: 2.0V 們科~ 3.3V
Environment	Operating Temperature	Standard: 0 ~ 60 °C
	Storage Temperature	Standard: -20 ~ 75 °C
	Humidity	Operating: 40 °C @ 95% relative humidity, non-condensing
		Storage: 60 °C @ 95%relative humidity, non-condensing
	Vibration Resistance	3.5 Grms
Mechanical	Dimensions	82 mm×95 mm
